OneCloud: Call Center Reporting - Reports

OneCloud: Call Center Reporting - Reports

The OneCloud portal can generate custom reports about call queues. These reports provide a graphical overview of call center statistics over a given period of time. The reports can cover the entire call center, queues, or individual agents. This granularity enables call center supervisors to monitor their call center.


To generate call center reports:

1. On the Call Center page, click the Reports button.

2. Select a date range.

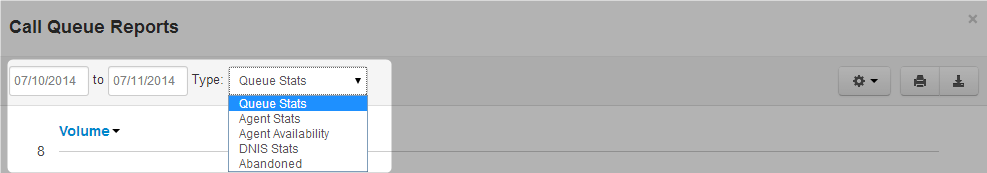

3. Use the Type drop-down list to select the type of report you want to generate (see the following sections for more information):

  • Queue Stats
  • Agent Stats
  • Agent Availability
  • DNIS (Dialed Number) Stats
  • Abandoned


Queue Stats

The Queue Stats report allows supervisors to view specific attributes on a queue-by-queue basis based on user-configurable attributes.



The drop-down list shown below allows you to select the information that will appear on the report.

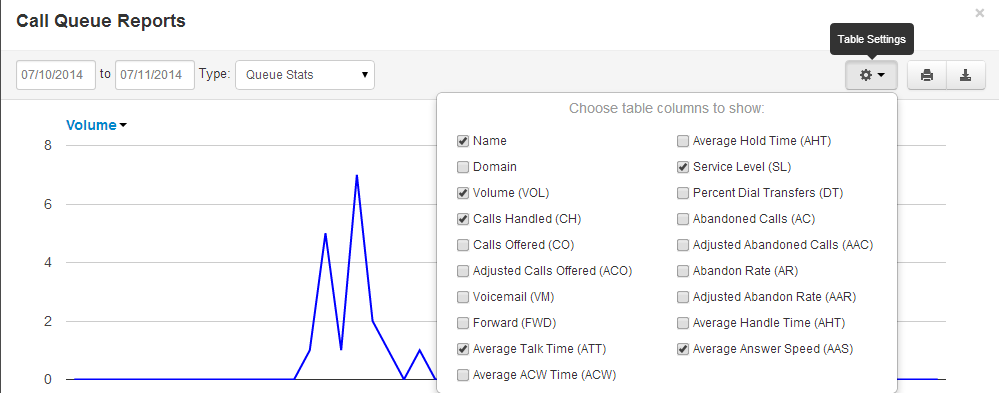

To change the available configuration fields, click the  Table Settings gear from the pop-up. When a list of checkboxes appears, check the fields you want to be displayed and uncheck the ones you want to hide.




You can now select the statistics that you want to be shown in your report. The available options are described below.

NOTE: You can click the checkboxes in the first column for Call Queue statistics to graph them individually, as shown in the above figure with the different colored rows. Clicking the first column header, which shows the bar graph icon, toggles all of the checkboxes on or off.


Queue Statistics Definitions


Agent Statistics

The Agent Stats report shows various agent statistics over time.

NOTE: You can click the checkboxes in the first column for Call Queue statistics to graph them individually, as shown in the above figure with the different colored rows. Clicking the first column header, which shows the bar graph icon, toggles all checkboxes on or off.



Agent Availability

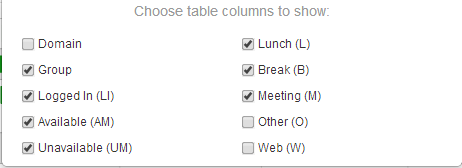

The Agent Availability report shows the availability of agents in the domain or in a department within a domain. You choose the values that are to be graphed from the following options:

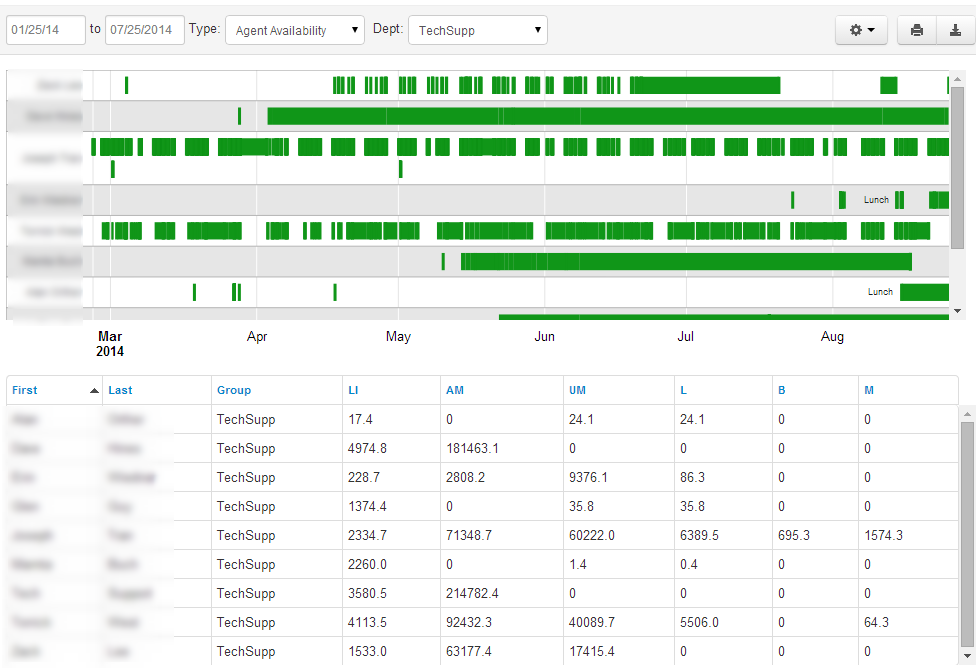

When configured, and when agents have been signing in and out, supervisors can see an agent availability display similar to the following.

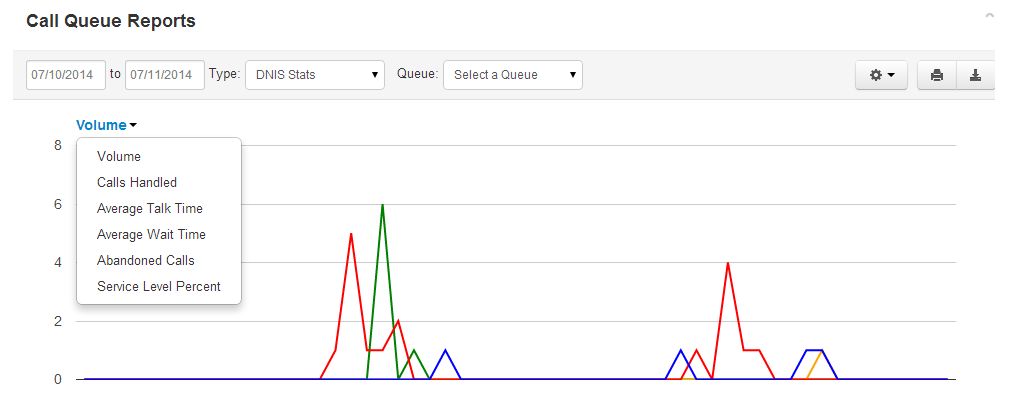

Dialed Number Identification Service (DNIS) Statistics

The DNIS stats report shows information based on the DNIS.  DNIS is a telephone service that informs the receiver about a call that the caller dialed. DNIS is a common feature of 800 and 900 services. If you have multiple 800 or 900 numbers to the same destination, the DNIS tells you which number was called.



NOTE: You can click the checkboxes in the 1st column for DNIS statistics to graph them individually; as shown in the above screenshot with the different colored rows. Also, clicking on the 1st column header (the bar graph icon) will toggle all of the checkboxes on/off.


DNIS Statistics Definitions


Abandoned Calls

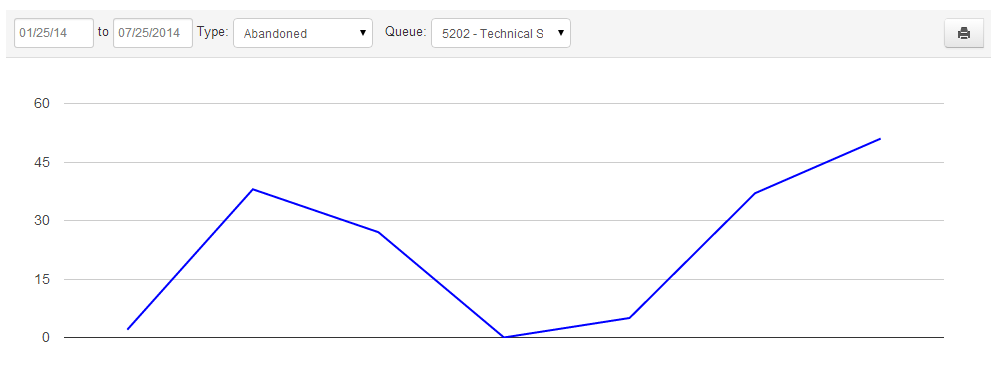

The Abandoned Calls report shows call center graphs for abandoned calls, organized by individual queues. Time is measured along the x-axis and the number of calls abandoned is measured along the y-axis. All of the abandoned calls for the queue appear below the graph, along with statistics about each individual call.
