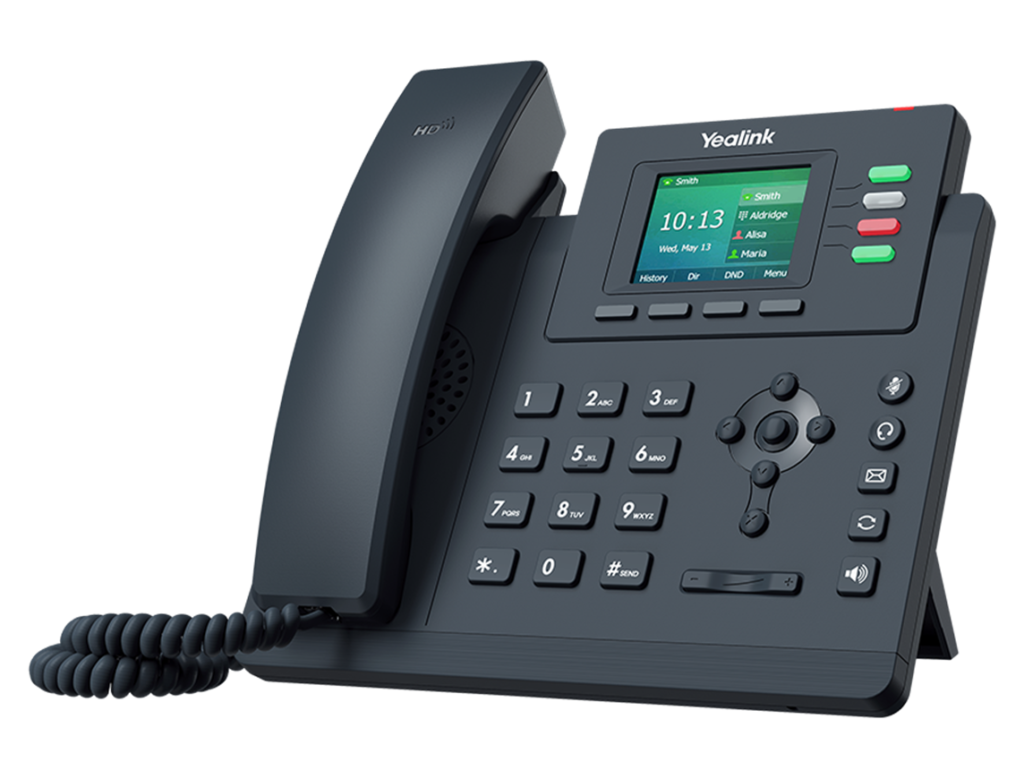

Yealink T33: User Guide for OneCloud

Yealink T33: User Guide for OneCloud


The Basics

PRIMARY BUTTON LAYOUT

 MUTE
Press the mute button while on an active call to mute your microphone. It will illuminate red when you are muted. Press again to un-mute the call.

 HEADSET
Press the headset button to enable the use of a compatible headset. It will illuminate green when active. Press again to disable.

 VOICEMAIL
Press the voicemail button and enter your pin number to hear an automated list of voicemail options. Options include listening to new messages, changing greetings, setting a new voicemail pin, and more. A full list of voicemail options can be found on page 5.

 REDIAL
Press the redial button to view a list of recently placed calls. If you would like to automatically redial your most recent placed call, simply press the redial button twice.

 SPEAKERPHONE
Press the speakerphone button to initiate the speakerphone either ahead of placing a call or while on an active call. It will illuminate green when active.


DIRECTIONAL PAD
The directional pad allows you to navigate the various menus and select different options depending on your goal. Simply press OK to select highlighted option.



X BUTTON

This button has three primary functions:
1. To back out of menus step by step until you have reached the home screen.
2. To end or hang up, a call.
3. To wake up your phone when it is in idle mode.


VOLUME CONTROL



This button has two primary functions:
1.To raise or lower the ringtone volume.
2.To raise or lower the call volume while on an active call using your handset, headset, or speakerphone.

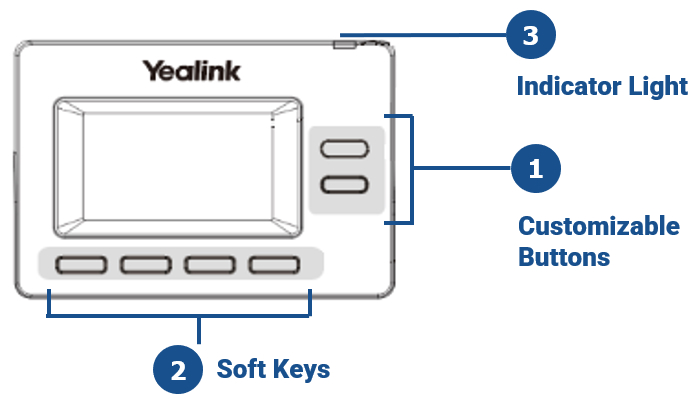

 CUSTOMIZABLE BUTTONS

As our phones are fully customizable, some of the programmable buttons may differ depending on your business needs.

● LINE APPEARANCE KEYS  |  Labeled as your extension number, these are your two open lines for multiple calls. While switching between lines, callers will automatically be placed on hold.
● PARK KEYS  |  Park allows you to place callers on a company-wide hold. Park buttons will illuminate red on all phones when there is a caller on park. Available park keys will remain green.
● ADDITIONAL PROGRAMMABLE FEATURES  |  Other programmable buttons include speed dials, busy lamp field (BLF), additional park buttons, page buttons, and more.

 SOFT KEYS

These buttons are referred to as soft keys because the options change depending on the menu you are in. The home screen displays the following options:

 The History soft key will take you to a list of your missed, placed, received, and forwarded calls. Use the directional pad to break down the list into individual categories or highlight an entry for more options. Within the history menu, the soft keys provide the following options: to go BackDelete a history entry, see more Options (such as call details, add to your local directory, or add to blacklist) and Send

 The Directory soft key takes you to your system’s phone book, both company-wide (Remote Phone Book > Company Directory) or personal (Local Directory > All Contacts). Within the directory menu, the soft keys provide the following options: to go BackSearch within the phonebook, see more Options (such as contact details or add to black list), and Send.

 When pressed, a DND icon will appear on your screen and signifies you are in Do Not Disturb mode. Incoming calls will be routed directly to your voicemail. Simply press DND again to receive calls again.

 Select the Menu soft key to access the phone’s basic settings. From here you can adjust various settings such as language, time and date, display options (such as backlight timers), and more.


 INDICATOR LIGHT





When the indicator light is flashing, you either have a missed call and/or a voicemail. Your screen will show a bouncing arrow icon for missed calls and a cassette tape or envelope icon for new voicemail messages. Simply check your call history and/or listen to the new voicemail(s) to clear the light and icon indicators.




Active Calls


PLACING A CALL

To place a call, pick up the handset, dial the number or extension, then press the send soft key. Alternatively, with the handset on its hook, press the speakerphone key, dial the number or extension, and press send. Or with your headset connected, press the headset key to activate headset mode, dial the number or extension, and press send.

INCOMING CALL

When receiving an incoming call, the soft keys will display the following options:

 Pick up the handset, press the speakerphone button, or press the Answer soft key.

 To forward the call to a 10-digit number or extension without answering the phone first.

 To stop the ringing but allows the caller to hear the standard number of rings before going to voicemail.

 To send the caller directly to voicemail.

ACTIVE CALL

Once on an active call, the soft keys will display the following options:

The Transfer  soft key allows the following types of transfers:

● BLIND  |  To send the caller to another extension or 10-digit number without speaking to the receiving party first. Press the Transfer soft key, dial the extension or 10-digit number, and press the B Transfer soft key.

● ATTENDED  |  To send the caller to another extension or 10-digit number after confirming with the receiving party first. Press the Transfer soft key, dial the extension or 10-digit number, and press Send. Once the receiving party confirms, then press the Transfer soft key.

● VOICEMAIL  | To send the caller directly to an internal extension’s voicemail, press the Transfer soft key, dial *55 + extension number, then press B Transfer.

To place a caller on hold, press the Hold  soft key. The other party will hear hold music until you resume the call by pressing the Resume soft key option.


To conference in another party, select the Conference  soft key. Dial the extension, 10-digit number, or search your contacts and press SendOnce the new party has answered, press the Conference soft key to bridge the calls together. Within the Conference menu, the soft keys provide the following options:


 To separate the calls back into two individual calls.

 To place both callers on hold.
 To mute, hold, or remove an individual on the call.
 To end the call.

Using the conference method, only 3 calls can be conferenced in at a time. If you would like to have a conference with more than three parties, we can set up a conference bridge to fit your needs.

In addition to hanging up the handset or pressing the X button, you may also press the End soft key to  end a call.


Voicemail

SETTING UP YOUR MAILBOX

The first time you log into your mailbox, we recommend recording your name and personal greeting. The name recording is for the dial-by-name directory, so when someone enters the first three letters of your last name, it will announce your name recording. The greeting plays when your mailbox is reached by a caller. It is very important to make a custom message, as many callers will not leave messages at mailboxes that have generic greetings.


ALTERNATE GREETINGS

Your mailbox supports multiple greetings for different scenarios like business trips and holidays.

From your mailbox main menu, press 6 for greetings, and then press 1 to record an alternate greeting. When prompted for the greeting number, press 2 for your next alternate greeting (1 is your default greeting). After your recording is completed, select the active greeting by selecting option 3 in the greetings menu.

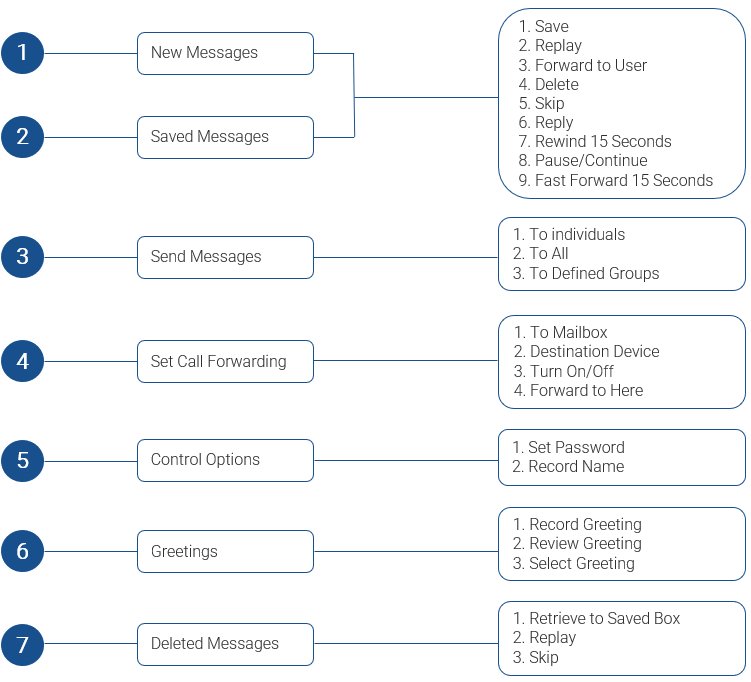

VOICEMAIL OPTIONS

To access your voicemail either press the Message button or dial 5001. You will be prompted to enter your pin, then you will be provided with the following voicemail options:

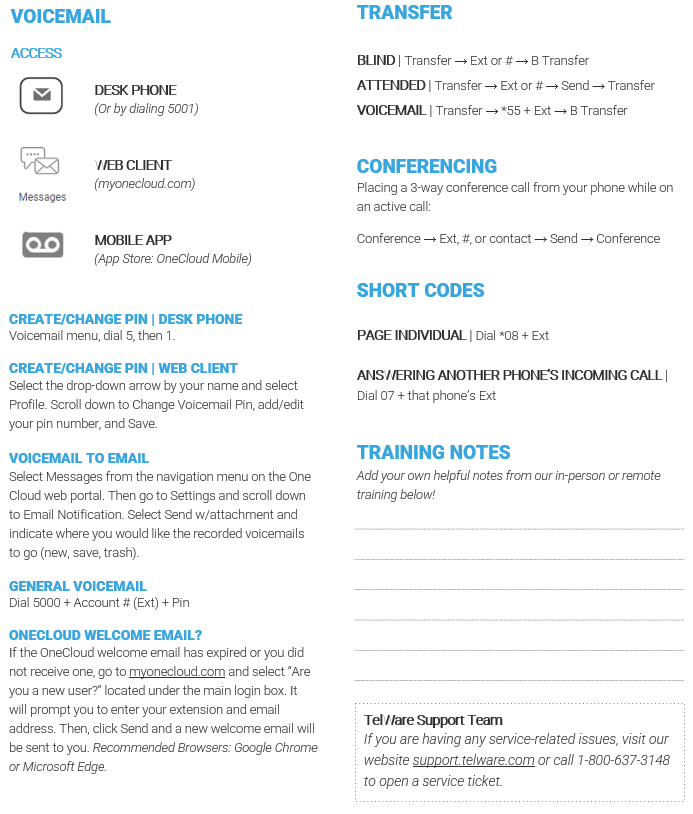

Quick Reference Guide
